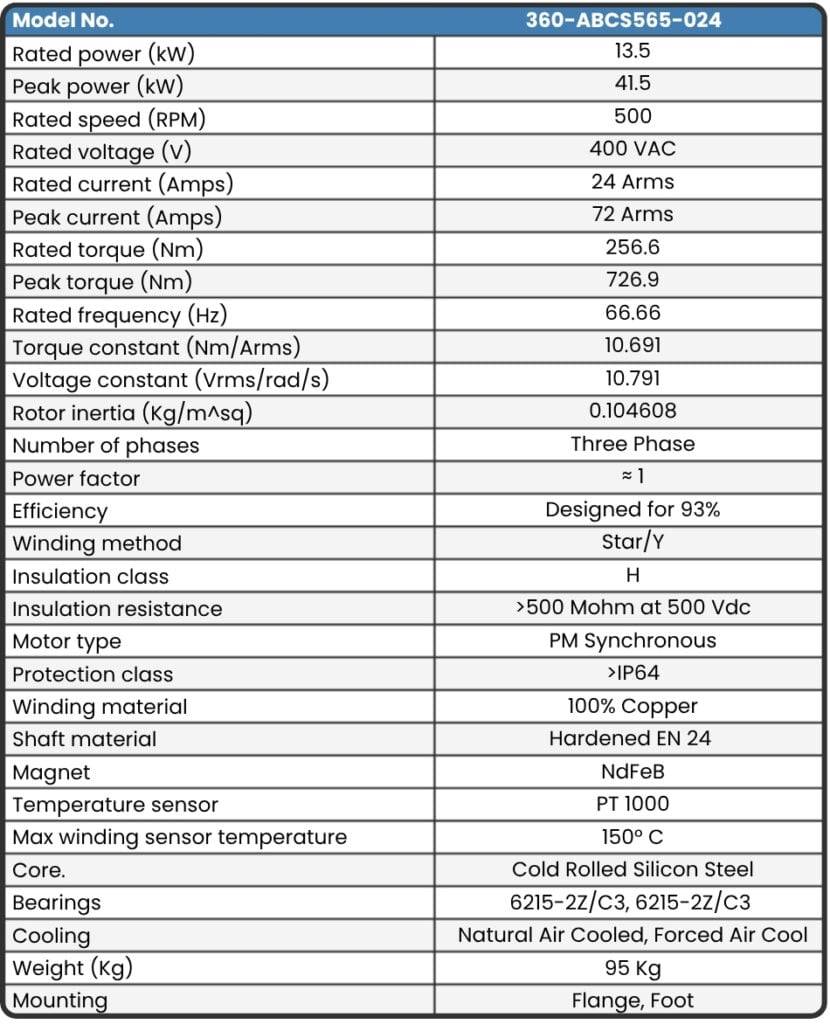

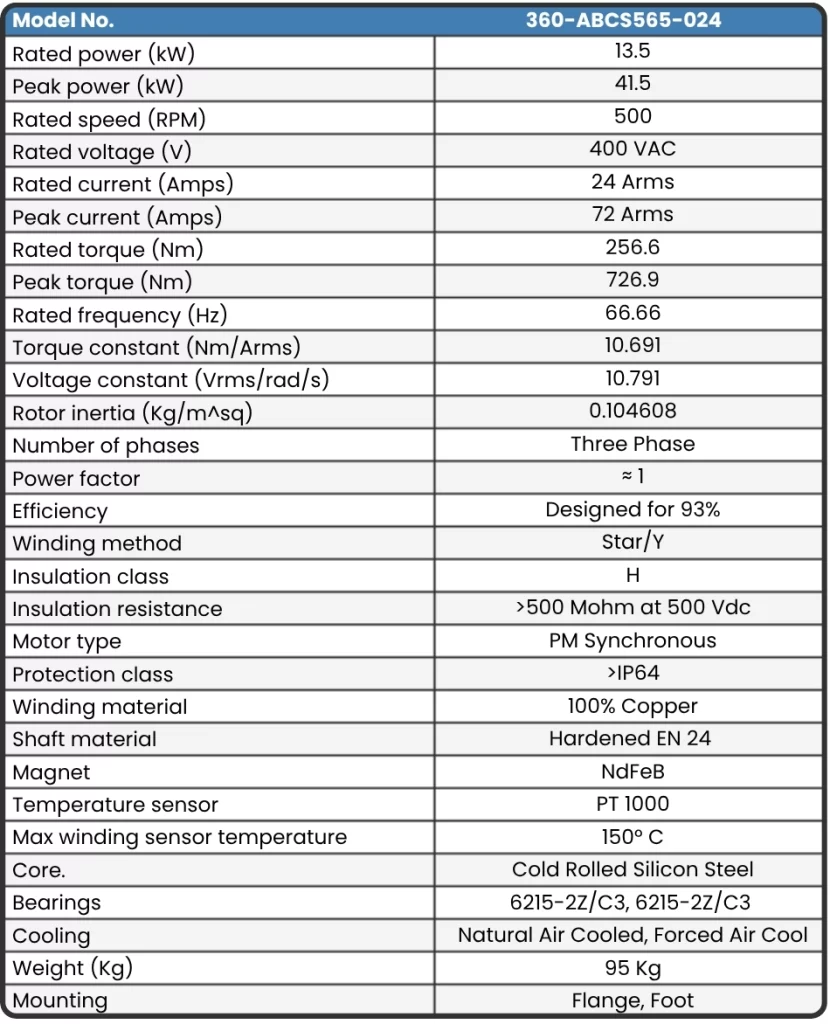

Technical Specifications | High Voltage Motor
The 360-ABCS565-024 High Voltage Permanent Magnet Synchronous Motor (PMSM) is a 13.5 kW 400VAC motor, which also delivers a remarkable peak power of 41.5 kW, built to provide high torque at controlled low speeds. With a rated speed of 500 RPM, this motor offers a continuous torque of 256.6 Nm. It reaches a peak torque of 726.9 Nm, making it an ideal solution for applications requiring strong, steady motion and energy efficiency. It ensures optimal performance even under demanding load conditions. Designed with advanced PMSM technology and efficiency above 90%, this motor is perfect for electric vehicles, agricultural equipment, hybrid systems, and industrial machinery where precision, low RPM operation is essential.
Download PDF
Mechanical Size chart

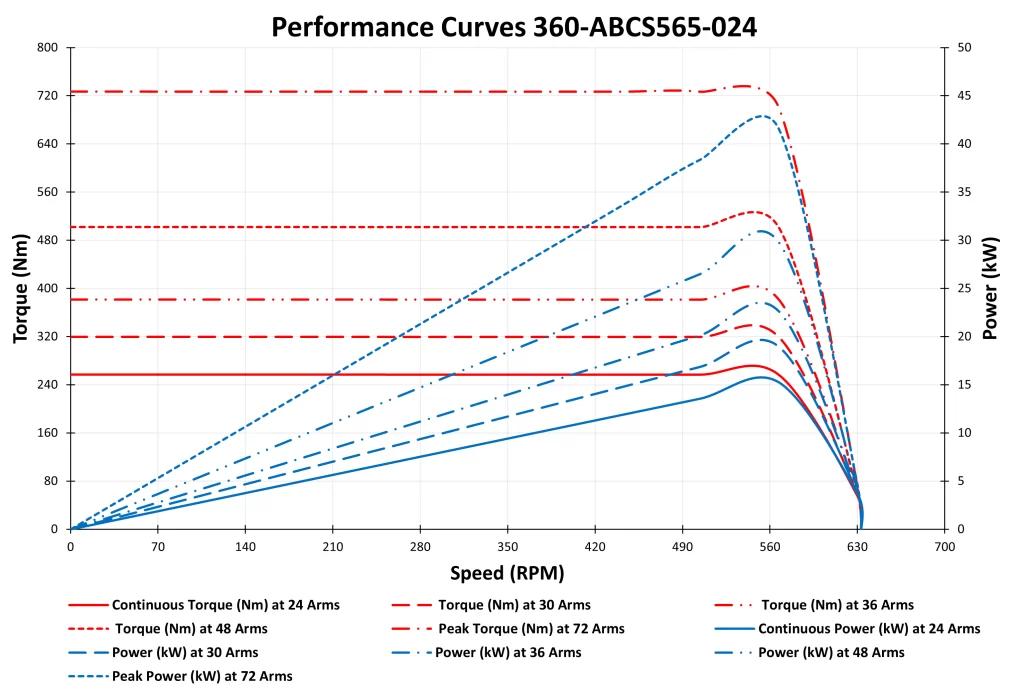

Performance Curve | High Voltage Motor
Applications of High Voltage Motor
-
Industrial automation
-
Electric and hybrid vehicles
-
Elevators and lift systems
-
Renewable energy system
-
Agriculture and farming
-
Mining equipments
-
Hydraulic system
-
Construction equipments
Need a Custom High Voltage Motor?
Contact our team to configure a motor that perfectly matches your application’s speed, voltage, and torque requirements.
