Engine Mounted Generator 48 Volt | Manufacturer: Innotec Power

48 Volt Generator Standard Offerings

255-EZ48-085

Power: 6 kW
Speed: 2600 RPM
Voltage: 48-56 VDC

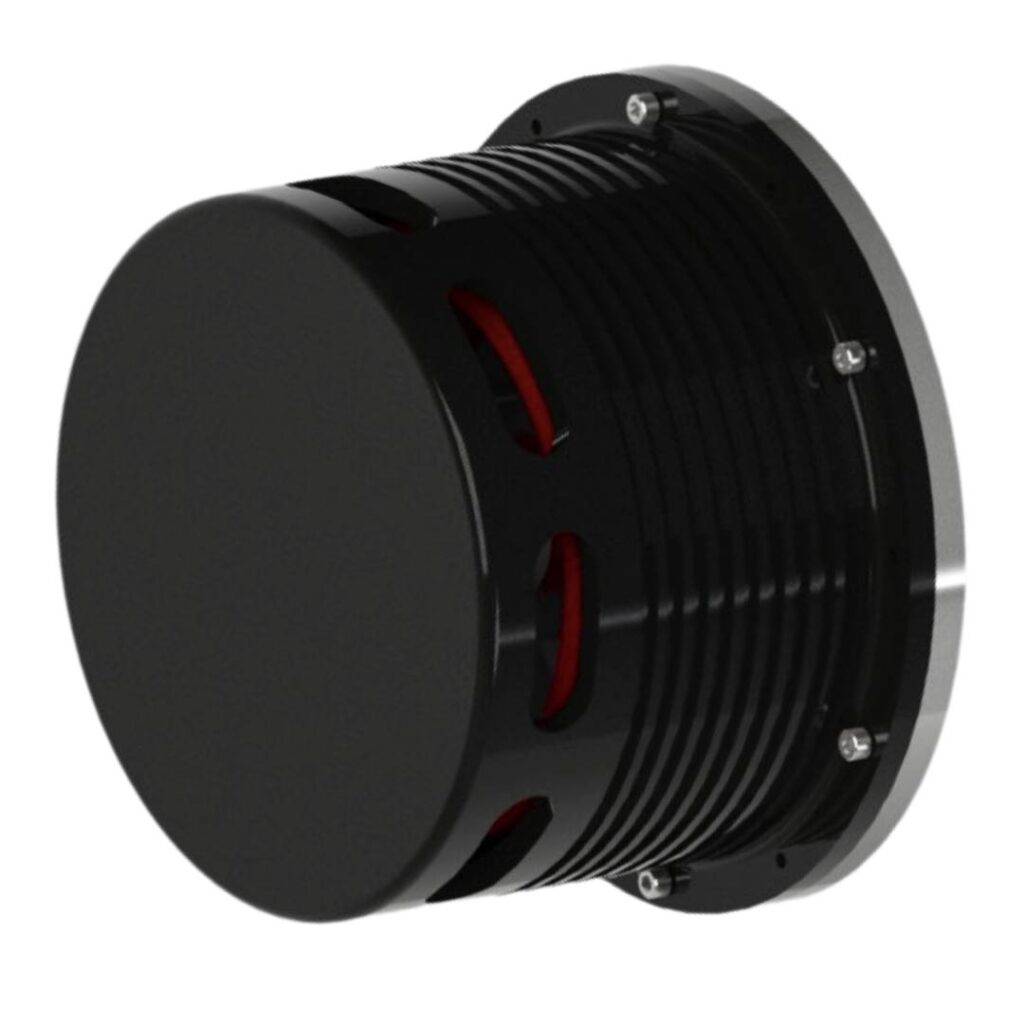

Mounting: Flywheel Driven

310-BE48-150

Power: 5 kW
Speed: 2400 RPM
Voltage: 48-56 VDC
Mounting: Flywheel Driven

310-CE48-225

Power: 12 kW
Speed: 2600 RPM
Voltage: 48-56 VDC
Mounting: Flywheel Driven

310-DZ48-225

Power: 10 kW
Speed: 2400 RPM
Voltage: 48-56 VDC
Mounting: Flywheel Driven

310-EZ48-225

Power: 13.5 kW
Speed: 2100 RPM
Voltage: 48-56 VDC
Mounting: Flywheel Driven

310-HZ48-350

Power: 16 kW
Speed: 2200 RPM
Voltage: 48-56 VDC
Mounting: Flywheel Driven

310-AZZ48-350

Power: 18 kW
Speed: 2000 RPM
Voltage: 48-56 VDC
Mounting: Flywheel Driven

145-AZZ48-065

Power: 3.5 kW
Speed: 3300 RPM
Voltage: 48-58 VDC

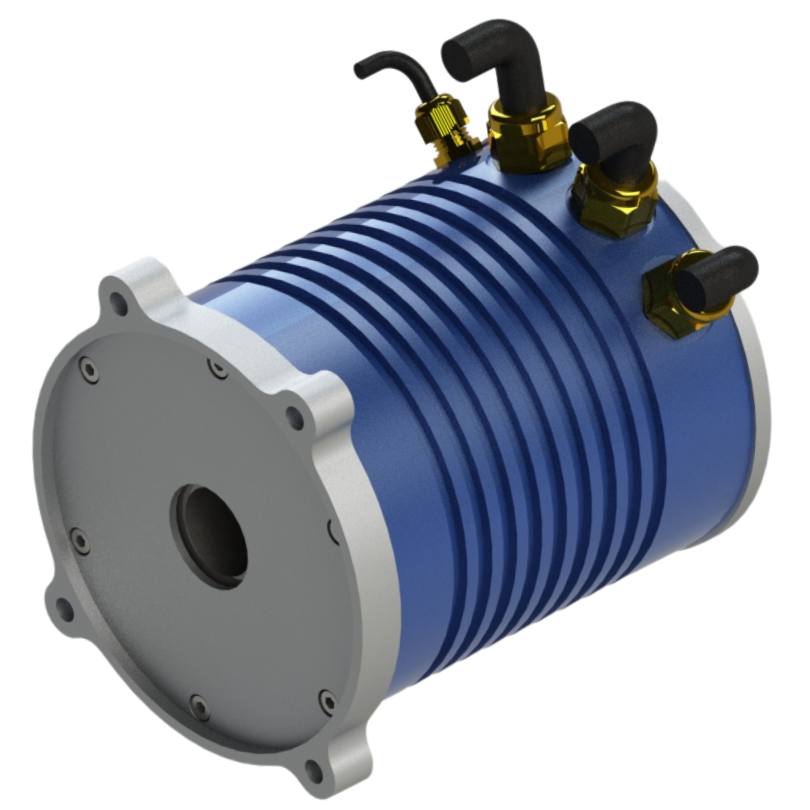

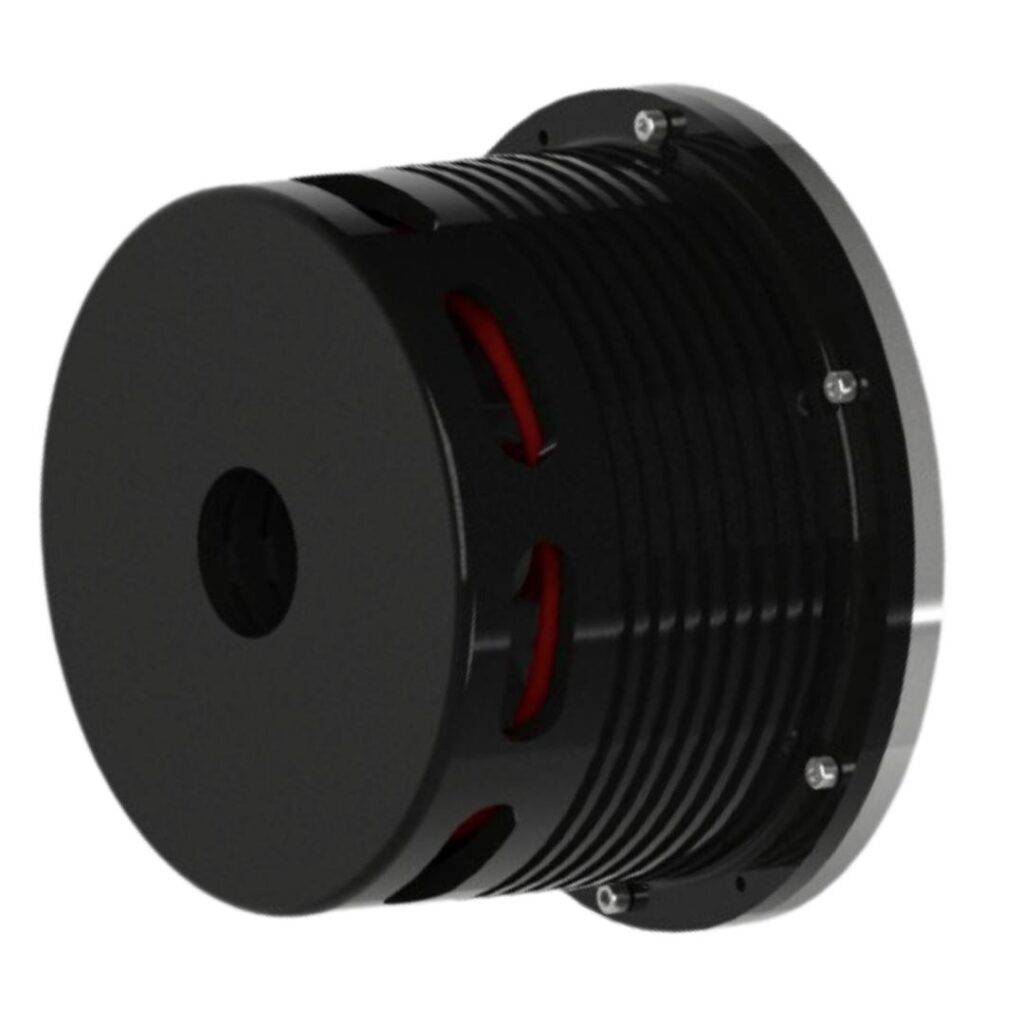

Mounting: J609, Shaft Driven

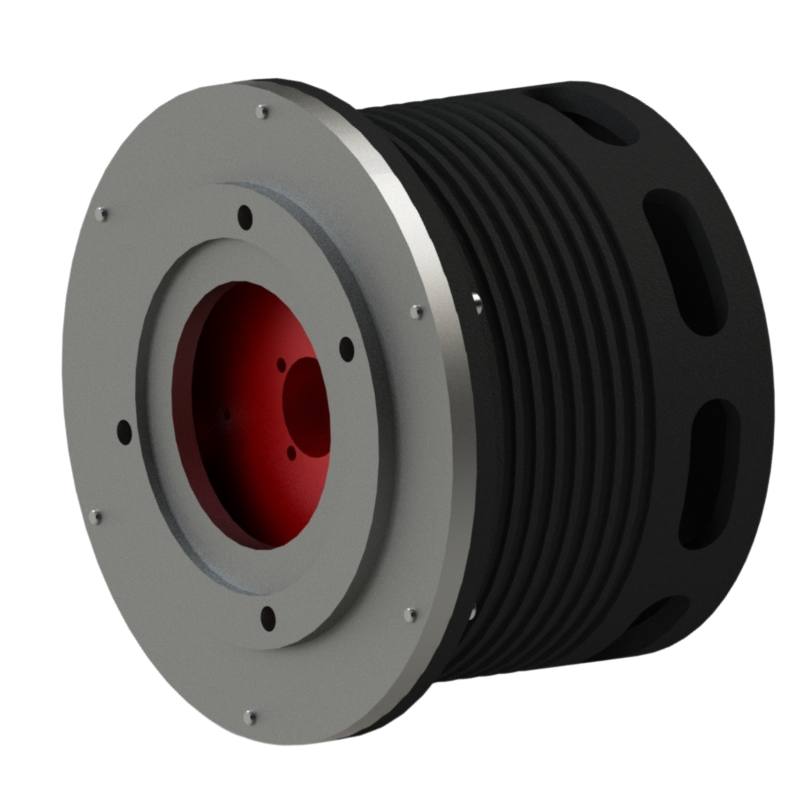

235-BE48-060

Power: 3 kW
Speed: 3200 RPM
Voltage: 48-56 VDC
Mounting: J609, Shaft Driven

235-DZ48-100

Power: 5 kW
Speed: 2600 RPM
Voltage: 48-56 VDC
Mounting: J609, Shaft Driven

235-EZ48-120

Power: 6 kW
Speed: 2700 RPM
Voltage: 48-56 VDC
Mounting: J609, Shaft Driven

235-GE48-175

Power: 9 kW
Speed: 2700 RPM
Voltage: 48-56 VDC
Mounting: J609, Shaft Driven

Get in touch with us to discuss customizations in the Engine Mounted generator with different combinations from SAE standard mountings: Housing SAE 5, 4 ,3 & Flywheel SAE 6.5, 7.5, 10, 11.5 along with shaft driven units with standard J609a & J609b.

Engine Mounted Generator | 48 Volt
