In today’s rapidly evolving electric mobility and industrial sectors, the demand for compact yet powerful motors is increasing. Among the most popular choices is the 48V 10kW BLDC motor, a reliable solution that combines high efficiency, low maintenance, and strong performance across a wide range of applications. Whether you are designing an electric vehicle, an industrial machine, or renewable energy equipment, this motor delivers the right balance between voltage, power, and torque.
This blog explores the features, benefits, applications, and technical advantages of the 48V 10kW BLDC motor, while also helping you understand why 48V motors are becoming the backbone of modern electric drive systems.
| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | Model No. | Continuous Rating Power (kW) | Continuous Rating Torque (Nm) | Power (kW) at 60 Minutes | Torque (Nm) at 60 Minutes | Power (kW) at 15 Minutes | Torque (Nm) at 15 Minutes | Rated Speed (RPM) | Motor type | Cooling |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Harshit | 08/09/2025 11:51 AM | Harshit | 08/09/2025 11:56 AM | 255-AHZS48-250 | 10 | 87.3 | 15.4 | 109.0 | 24.4 | 173.0 | 1,200.0 | SPM | Natural |
| 2 | Harshit | 08/09/2025 11:51 AM | Harshit | 08/09/2025 11:56 AM | 360-CZS48-200 | 10 | 65.0 | 13.2 | 84.3 | 21.5 | 136.8 | 1,500.0 | SPM | Natural |
| 3 | Harshit | 08/09/2025 11:51 AM | Harshit | 08/09/2025 11:56 AM | 360-AZZS48-200 | 10 | 217.5 | 13.0 | 270.0 | 20.3 | 424.2 | 450.0 | SPM | Natural |
| 4 | Harshit | 08/09/2025 11:51 AM | Harshit | 08/09/2025 11:56 AM | 360-AEZS48-200 | 10 | 326.0 | 12.9 | 405.6 | 20.3 | 635.9 | 300.0 | SPM | Natural |
| Model No. | Continuous Rating Power (kW) | Continuous Rating Torque (Nm) | Power (kW) at 60 Minutes | Torque (Nm) at 60 Minutes | Power (kW) at 15 Minutes | Torque (Nm) at 15 Minutes | Rated Speed (RPM) | Motor type | Cooling |
What is a 48V 10kW BLDC Motor?

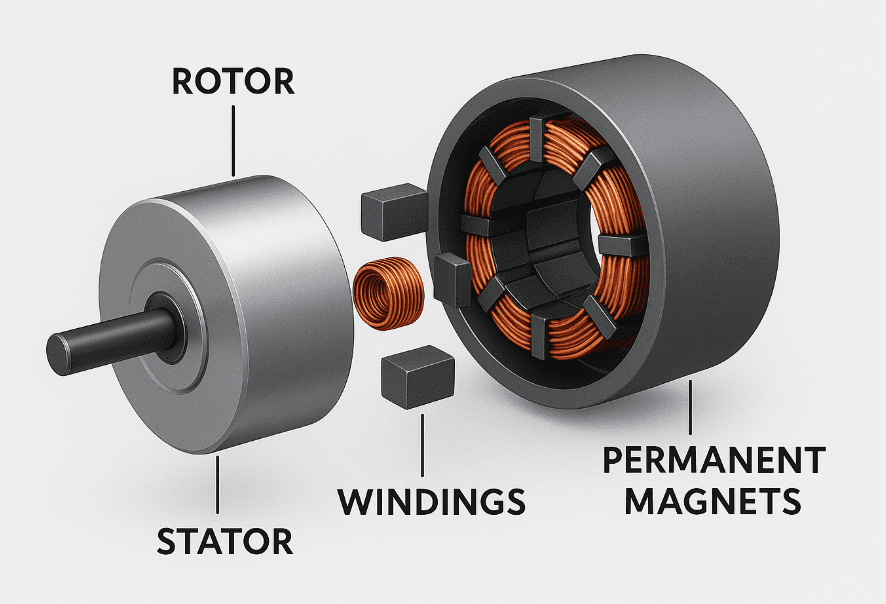

A BLDC motor, or brushless DC motor, is a type of permanent magnet motor that eliminates brushes and commutators, relying instead on electronic controllers for commutation. This design makes the motor more efficient, reliable, and long-lasting compared to traditional brushed motors.
The 48V 10kW BLDC motor operates at 48 volts of direct current, delivering a peak power of 10 kilowatts. This makes it suitable for medium to heavy-duty applications, where consistent torque and durability are essential. Unlike higher-voltage motors, the 48V configuration provides an excellent balance of performance and safety, which is why it is widely used in EVs, golf carts, forklifts, and other electric mobility solutions.
Key Features of the 48V 10kW BLDC Motor
The 48V 10kW BLDC motor stands out because of its performance and adaptability. Some of its most important features include:
High Efficiency – BLDC technology ensures low energy loss, making it ideal for battery-powered applications.
Compact Design – A lightweight build allows integration into small spaces without compromising power.
Durable and Low Maintenance – With no brushes to wear out, the lifespan is significantly longer.
Excellent Torque Output – Offers stable torque across wide speed ranges.
Quiet Operation – Smooth commutation results in low noise, perfect for electric vehicles and indoor equipment.
Regenerative Braking Capability – Helps save energy by converting braking force into stored battery power.
Why Choose a 48V Motor System?
The popularity of 48V motors lies in their versatility and safe operating voltage. Unlike 72V or 96V systems, which require stricter insulation and safety measures, 48V systems can deliver powerful performance while remaining cost-effective and easier to maintain.
The 48V 10kW BLDC motor is often chosen because:
It meets the power demands of mid-range EVs like electric bikes, scooters, and go-karts.
It works well in industrial automation, as well as in applications such as pumps and conveyors, where efficiency is crucial.
It is a safe option for systems that need high power without the risks of higher voltages.
Applications of the 48V 10kW BLDC Motor
The versatility of the 48V 10kW BLDC motor makes it a preferred choice in several industries. Some of the most common applications include:
From small cars to utility vehicles, the 48V 10kW BLDC motor provides the right mix of speed and torque. It is widely used in electric rickshaws, golf carts, electric scooters, and go-karts.
Machines like conveyors, pumps, compressors, and automation tools rely on the motor for energy efficiency and reliability.
The motor can be paired with 48V battery banks and solar setups to power hybrid systems, making it an eco-friendly solution.
In boats and small watercraft, the motor delivers high torque with smooth, quiet operation, making it ideal for marine propulsion.
The motor’s efficiency supports electric tractors, sprayers, and utility equipment in agriculture, reducing reliance on fossil fuels.
Technical Advantages of a 48V 10kW BLDC Motor
Compared to traditional induction motors or brushed motors, the 48V 10kW BLDC motor offers several advantages:
Higher Efficiency: BLDC motors operate at up to 95% efficiency, reducing battery drain.
Better Power Density: More power in a smaller package compared to brushed DC motors.
Precise Control: Electronic controllers allow fine control over speed and torque.
Longer Lifespan: With fewer mechanical parts to wear out, durability is significantly higher.
Compatibility: Works with modern PMSM controllers and can be adapted for regenerative braking.
Comparison with Other BLDC Motors
When comparing the 48V 10kW BLDC motor to lower-wattage motors such as 48V 3kW or 48V 5kW motors, the main difference lies in power output and application range. Smaller motors are best suited for lightweight vehicles, while the 10kW version powers mid-sized vehicles and heavier industrial loads.
On the other hand, higher-voltage motors like 72V BLDC motors provide more top-end speed but often require additional safety mechanisms. This makes the 48V 10kW BLDC motor a perfect middle ground, offering strong performance while keeping costs and safety requirements manageable.
Integration with PMSM and Other Motor Types
The 48V 10kW BLDC motor often overlaps in application with PMSM motors (Permanent Magnet Synchronous Motors). Both motors are permanent magnet-based and provide high efficiency. While PMSM motors are typically used in higher precision applications, BLDC motors are preferred for cost-sensitive and versatile uses.
In some systems, 48V PMSM motors, brushless DC motors, and 48V permanent magnet motors are used interchangeably depending on the controller and design needs.
Choosing the Right 48V 10kW BLDC Motor
When selecting a 48V 10kW BLDC motor, consider the following:
Torque and Speed Requirements – Match the motor specs with the load profile.
Controller Compatibility – Ensure the electronic controller supports BLDC operation.
Cooling Needs – Depending on usage, choose between air-cooled or liquid-cooled motors.
Battery Bank Capacity – The motor should align with your battery system for optimal runtime.
Application Environment – Check for waterproofing and durability if used outdoors or in marine setups.
