Introduction: The Rise of High-Efficiency Motors
As industries continue to move toward smarter, more efficient electric machines, the demand for high-performance motors is growing rapidly. One standout in this space is the IPM motor, also known as the Interior Permanent Magnet motor. Whether you’re building an electric vehicle, designing a hybrid mobile generator, or working on industrial automation, choosing the right type of motor is essential for performance, reliability, and energy savings. At Innotec Power, we specialize in designing advanced permanent magnet motors like IPM motors and PMSMs (Permanent Magnet Synchronous Motors) that are optimized for real-world applications.
What Exactly Is an IPM Motor?

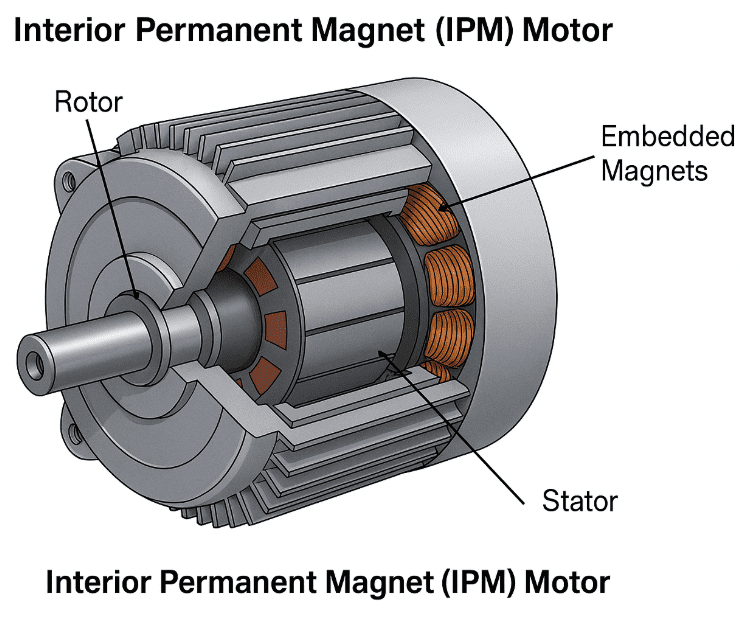

An IPM motor, or Interior Permanent Magnet motor, is a type of PM synchronous motor (PMSM) where the permanent magnets are embedded within the rotor core. Unlike surface-mounted motors, the magnets are located inside the rotor, which allows the machine to take advantage of both magnetic and reluctance torque. This combination results in greater torque density, improved thermal handling, and more efficient performance at high speeds.
IPM motors belong to the family of brushless motors, just like BLDC motors (Brushless DC motors). However, their internal architecture provides more robust performance under variable load and speed conditions. Because of this, IPM motors are used in many demanding environments like construction equipment, marine propulsion, airport GSE systems, and off-grid hybrid power systems.
How Does an IPM Motor Compare to Other Brushless Motors?

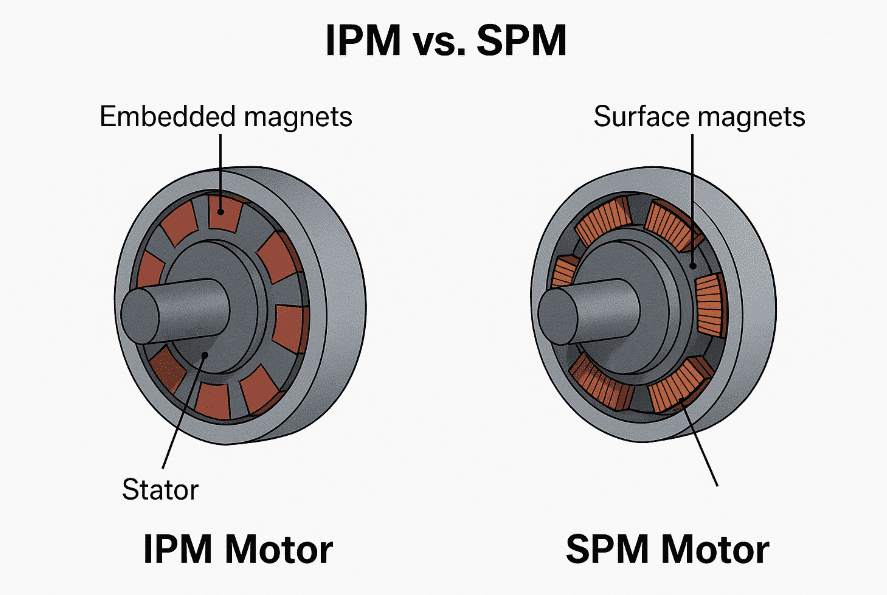

While all BLDC motors and PMSMs are brushless and rely on permanent magnets to produce torque, there are key differences in how they operate. One major factor is magnet placement. In a Surface Permanent Magnet motor (SPM), the magnets are mounted on the outside surface of the rotor. These motors are easier to control and often used in cost-sensitive applications. However, they lack the field-weakening and high-speed capabilities of IPM motors.
By contrast, Interior Permanent Magnet motors have magnets embedded within the rotor laminations. This configuration allows the motor to produce both magnetic torque and reluctance torque, which leads to higher efficiency and better speed control over a wider range. This makes IPMs far more suitable for applications where load and speed vary significantly—such as in electric propulsion systems or mobile DC generators.
Applications of IPM Motors Across Industries
IPM motors are quickly becoming the preferred choice for industries that require high performance in compact, rugged systems. At Innotec Power, we supply custom-engineered IPM motors to a range of sectors, including:
Electric Off-Highway Vehicles: For powering heavy machinery used in construction, agriculture, and mining.
Marine Propulsion: For quiet, high-efficiency marine drives in electric or hybrid boats.
Ground Support Equipment (GSE): Used in airports for towing vehicles and power carts that demand long run-times and high reliability.
Hybrid Power Generators: For off-grid and mobile energy applications requiring continuous-duty performance.
EV and Hybrid Drivetrains: Thanks to the superior control and torque capabilities, IPMs are ideal for propulsion systems.
Each of these use cases benefits from the motor’s inherent advantages in thermal performance, speed control, and power density.
Key Advantages of IPM Motors
IPM motors offer several performance advantages over traditional brushless and surface permanent magnet motors:
- Higher Torque Density: Thanks to the combination of magnetic and reluctance torque, IPM motors provide more torque per volume than conventional SPM or BLDC motors.
- Better Efficiency: Especially in field-weakening regions and under high load conditions, IPM motors consume less energy.
- Superior Thermal Management: With magnets safely embedded inside the rotor, heat dissipation is more effective, reducing the risk of magnet demagnetization.
- Wider Speed Range: IPM motors operate efficiently across low to high speeds, making them ideal for electric drive systems and high-performance alternators.
- Increased Durability: The internal magnet design makes these motors mechanically stronger and more resistant to damage.
Whether you’re searching for a 24V PMSM motor, a 48V IPM motor, or even a 96V brushless motor, the advantages of IPM motors scale across voltage levels, offering consistent performance and reliability.
Understanding Our Motor Designation: IPM vs. SPM
One question we often receive is: “How do I know if a motor is IPM or SPM just by the part number?” At Innotec Power, we make this simple.
Our motor part numbers include a letter at the end that identifies the magnet placement:
Models like 255-DZS are SPM motors (Surface Permanent Magnet).
Models like 255-DZI are IPM motors—where “I” stands for “Interior.”
This naming convention helps OEMs and engineers easily determine the motor’s internal architecture when browsing or specifying units for projects.
Voltage Options Available: 24V, 48V, 72V & 96V
Innotec Power manufactures IPM and PMSM motors across a variety of voltage classes to suit different applications:
24V PMSM Motor: Great for compact systems or mobile platforms with low-voltage requirements.
48V IPM Motor: Ideal for electric vehicles, marine systems, and industrial tools where mid-range voltage is needed.
72V and 96V Brushless Motors: Used in high-power applications such as hybrid generators, electric propulsion, and heavy-duty machinery.
We also offer customized voltage ratings based on your system design.
Why Choose Innotec Power for IPM Motors?
As a trusted manufacturer of permanent magnet motors, we pride ourselves on engineering excellence and customer-focused customisation. Here’s what makes Innotec Power a global leader in PMSM and BLDC motor manufacturing:
Decades of Experience: Our engineering team has designed motors for industries worldwide.

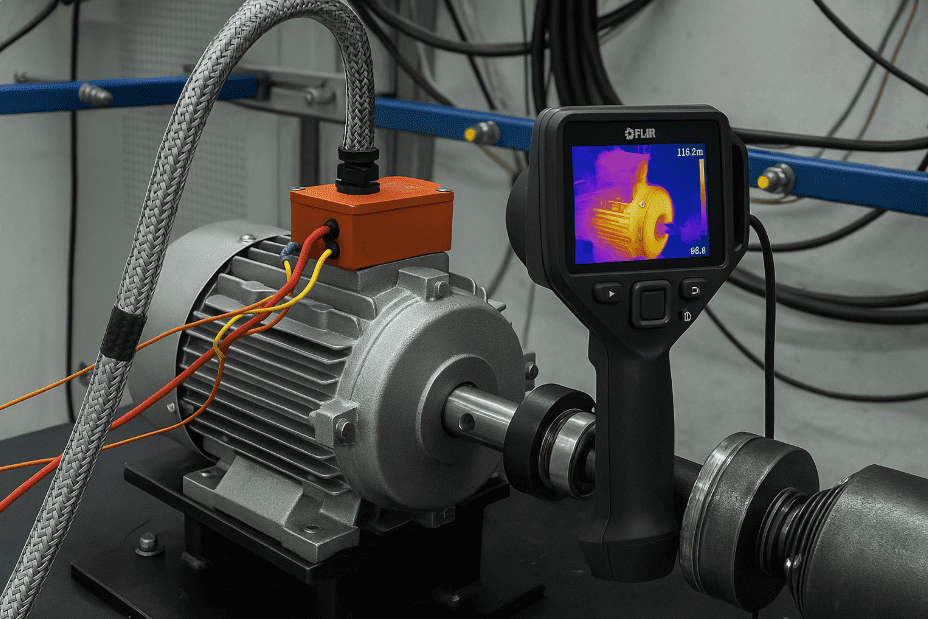

In-House Testing: Every IPM motor goes through rigorous testing for torque, thermal, and electrical performance.
Custom Options: We offer flexible winding options, voltage ratings, shaft designs, and cooling systems.
Global Reach: We support OEMs in North America, Europe, and Asia with fast lead times and robust supply chains.
IP67 Protection: Our motors are built to withstand harsh environments and continuous-duty cycles.
