(SAE A / Low RPM Torque / OEM Integration Ready)
Hydraulic power packs and pump systems need motors that can handle heavy loads, provide high starting torque, and run smoothly even at low speeds. The Innotec High Torque Hydraulic Pump Motor Platform is designed especially for these demanding systems. Built for OEM integration, it delivers continuous torque, comes with SAE A 2-bolt mounting, and features a 9T 16/32 DP spline shaft output. This allows direct pump coupling, removing the need for belts and reducing alignment problems or power loss.
These high torque motors are perfect for hydraulic drive units, compact power packs, agricultural loaders, skid steer systems, and industrial press equipment. Unlike hobby-grade solutions, they are built for continuous industrial performance, offering strong and reliable power for real-world hydraulic applications.
Low-Speed, High Torque for Hydraulic Systems
Hydraulic pumps usually operate between 500 to 2000 RPM. Many regular motors lose torque in this range, causing performance issues. The Innotec high torque motor maintains strong torque at low RPM, helping the hydraulic system build pressure smoothly without overheating or stalling.
These motors are ideal for:
- Mobile and stationary hydraulic power packs
- Direct drive hydraulic pump systems
- Compact hydraulic power unit (HPU) manufacturing
- Skid steer and mobile attachment drives
If you need consistent performance at low speeds, these motors deliver steady torque and reliable operation in every use case.
SAE A Flange and Spline Shaft Compatibility

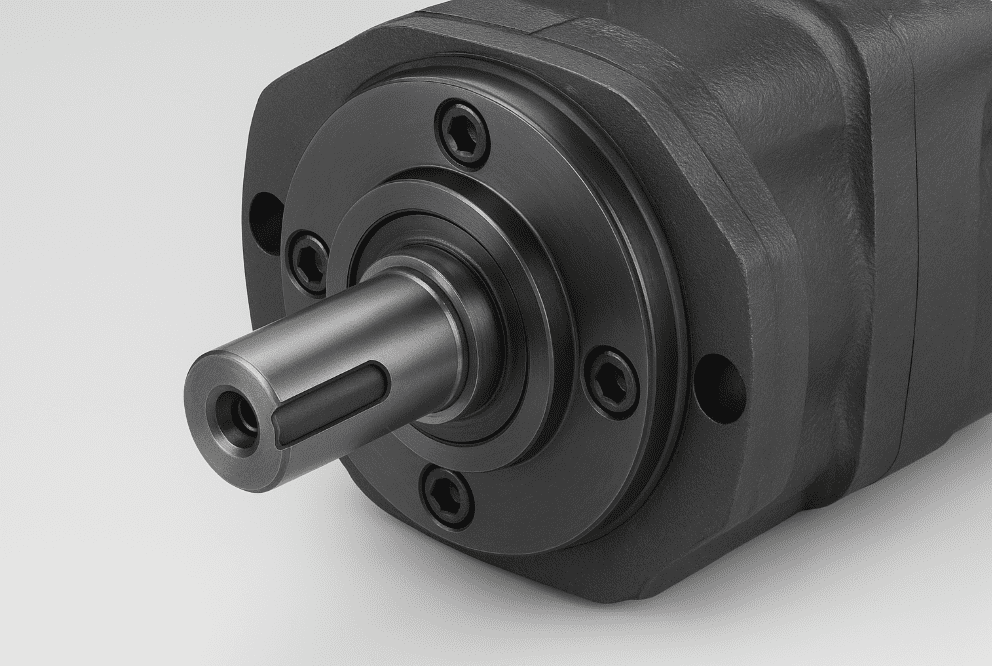

To make direct pump mounting simple and reliable, these motors are available with standard SAE A 2-bolt face flanges. They include a 9T 16/32 DP involute spline shaft designed for direct hydraulic pump connection.
Technical Interface Options:
- Flange Standard: SAE A 2-bolt face (optional SAE B available)
- Output Shaft: 9T 16/32 DP spline (ready for pump coupling)
- Alignment: Precision-machined face for secure sealing
- Custom Options: Keyed or alternate spline profiles available
This setup ensures perfect fitment with your hydraulic system while minimizing vibration and wear.
Available Voltages — 24V, 48V, and 72V Models
Different hydraulic systems run on different voltages. To meet these needs, the Innotec high torque motor is offered in 24V, 48V, and 72V options.
| Voltage | Best For | |
|---|---|---|
| 24V High Torque Pump Motor | Compact mobile hydraulic systems | |
| 48V High Torque Pump Motor | Industrial attachments & equipment | |
| 72V High Torque Pump Motor | Heavy-duty hydraulic systems |
Looking for higher voltage options like 96V or 400V? You can schedule an engineering call to discuss custom solutions.
BLDC Efficiency Advantage Over Traditional Hydraulic Motors
Traditional hydraulic systems often run continuously under high pressure, wasting energy. In contrast, BLDC high torque motors use electronic control to deliver torque only when needed, reducing energy loss by up to 20%.
Here are the main advantages:
Lower current draw and less strain on power supply
Reduced oil turbulence and heat generation
Smooth torque control with electronic modulation
Compatible with Curtis, ZAPI, and other industrial controllers
This means your hydraulic system runs cooler, quieter, and more efficiently.
Gear Reduction and Coupling Options
Some hydraulic setups, like high-pressure presses or agricultural cutters, need even higher startup torque or shock absorption. For these applications, optional gear reduction interfaces and coupling sleeves can be added.
These accessories help manage load surges smoothly and extend the system’s service life.
OEM Supply — Export Ready for Global Manufacturers
Innotec supplies these motors to OEM hydraulic equipment builders and power pack manufacturers worldwide. The motors are engineered for quality and performance, backed by OEM-friendly manufacturing and export logistics.
OEM Benefits:
- MOQ flexibility for prototypes or pre-production runs
- Batch allocation for hydraulic OEM orders
- Export packaging suitable for US, EU, and global shipping
- CE and UL compliance available on request
FAQ — Common Engineering Questions
Yes. With an SAE A flange and spline shaft output, a BLDC high torque motor can directly replace hydraulic pump motors while providing better energy efficiency and lower heat generation.
The standard configuration uses a 9T 16/32 DP spline, which is compatible with most hydraulic gear and vane pumps. Custom shafts are also available.
48V is the most common choice for OEM hydraulic systems. However, 24V motors are ideal for compact mobile units, while 72V models suit heavy-duty hydraulic packs.
